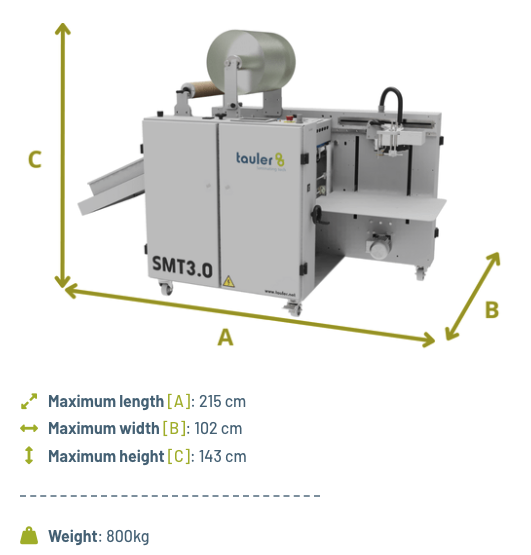

Tauler SMT 3.0

The most user-friendly small automatic laminating machine

The main reasons for choosing an SMT 3.0:

Because it is the MOST FRIENDLY laminating machine manufactured in the EU.
· Because it has a simple and easy to use automatic feeder.
· Because its ZERO WASTE system allows you to start and stop without losing a single sheet.
· Because it incorporates a silent compressor.
· Because you can print toner prints with your TAULER_FOIL system.
· For its intuitive touch screen.
· Because it incorporates a REVERSE MODE to correct possible errors.
· Because it incorporates non-stick rollers for ease of use.
· Because it has an automatic start-up system TAULER_GO ON.

Advanced specifications:

• Fully automatic sheet feed and cutting system.
• Adjustable side bracket.
• Temperature control by sensor.
• Pneumatically operated anti-stick pressure roller.
• Easily adjustable anti-curling system.
• Smart Photocell that stops the machine in case of sheet failure.
• Optional pneumatic shaft.
• Total control of the machine through a PLC.
• Electronically adjustable speed.
• Microperforation cutting system and scissor roller.

Maximum format | 500×700 mm
Minimum format | 300×250 mm
Maximum mechanical speed | 2 – 15 m/min*
Paper thickness | 130 a 400 g/m2
input/Output stack height | 28 cm
Film thickness | 20 to 42 μm
Electrical power installed | 4 kW
Power supply | 230 V single phase 50 Hz
Security | CE-compliant protections, emergency stops, and safety sensors.

SMT3.0 Brochure (Spanish)
